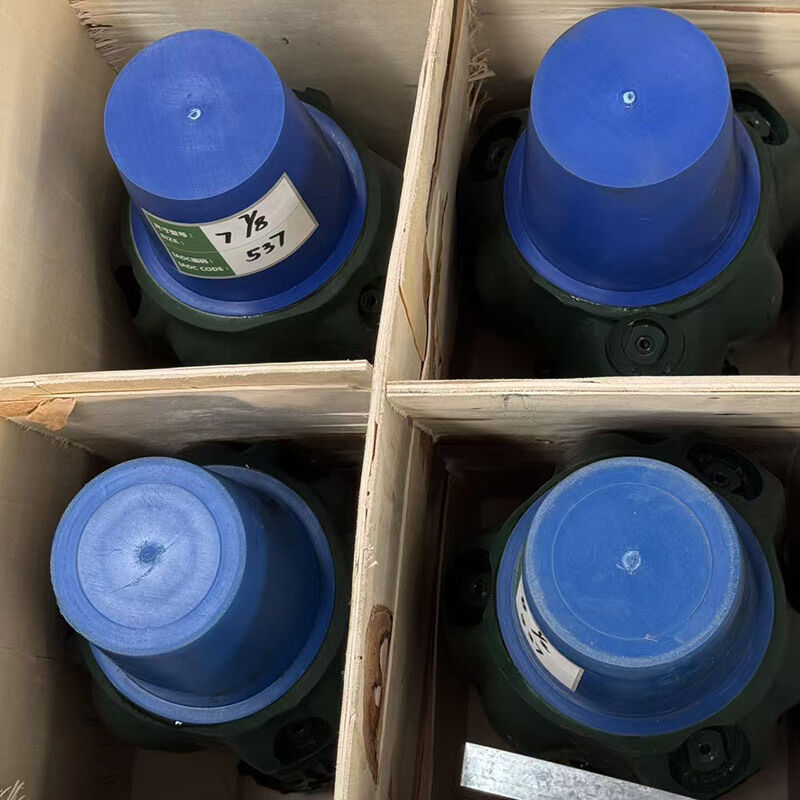

Small Size Tricone Bit Package

Место происхождения:

Хэбэй, Китай

Сертификация:

ISO9001

Свяжитесь с нами

Запросите цитату

Подробная информация о продукции

Тип сопла:

Зафиксированный

Спецификация:

Корпус из матрицы или стали

Преимущество:

Прочный и высокоэффективный

Размер конуса:

Доступны различные размеры

IADC:

Основывается на геологии

Тип:

TCI или стальной зуб

Тип подшипника:

Подшипник журнала

Условия оплаты и доставки

Цена

Подлежит обсуждению

Упаковывая детали

Согласно потребностям клиента

Время доставки

5-15 рабочих дней

Условия оплаты

Т/Т

Поставка способности

50000 шт/месяц

Сопутствующие продукты

Видео

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

Лучшая цена

Видео

374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

Лучшая цена

Small Size Tricone Bit Package

Лучшая цена

20 дюймовый Tci Tricone Bit, IADC535 Tricone сверла новые кованые буровые водяные вращающие

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

Small Size Tricone Bit Package

Three cone drill bit is a drilling tool widely used in the fields of oil, gas, and geological exploration. Its core structure consists of three rotatable cones, each of which is embedded with high-strength alloy teeth. During the drilling process, the roller cone generates impact and shear with the formation through rotation, achieving efficient rock breaking. Due to its unique mechanical design, it can maintain stable drilling in high hardness rock layers and reduce the risk of drilling jamming

The overall structure is made of high-quality alloy steel, and the surface of the roller cone has undergone special heat treatment, which significantly improves its wear resistance. In actual downhole operations, the performance is very stable in deep hard rock sections, with almost no occurrence of eccentric wear or tooth loss. Even after working continuously for dozens of hours, it still maintains good cutting ability. What surprised me even more was its water eye design, which had a smooth flushing effect and effectively removed debris, reducing the possibility of secondary wear and tear. For projects that require frequent handling of complex geological formations, this kind of optimization in details can really improve overall efficiency

PRODUCT SPECIFICATIONS
product name	10 5/8 inch CA542 TCI tricone bit
size	10 5/8 inch,269.9mm
model number	CA535
series	CA
tooth type	TCI
connection	6 5/8" Reg PIN
bearing	Open bearing bit
Nozzle	three jet nozzles
application	Mining,water well,oil well,HDD,exploration,etc
weight	78kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	415	435	445	515,525	535,545	615,625	635,645	735,835
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
